Coupling Drive Centrifugal Fans
The No.7 Arrangement, also known as the Coupling Arrangement, is designed for SINGLE INLET CENTRIFUGAL fan sets.
Centrigual Fans
Distinct advantage over direct drive systems

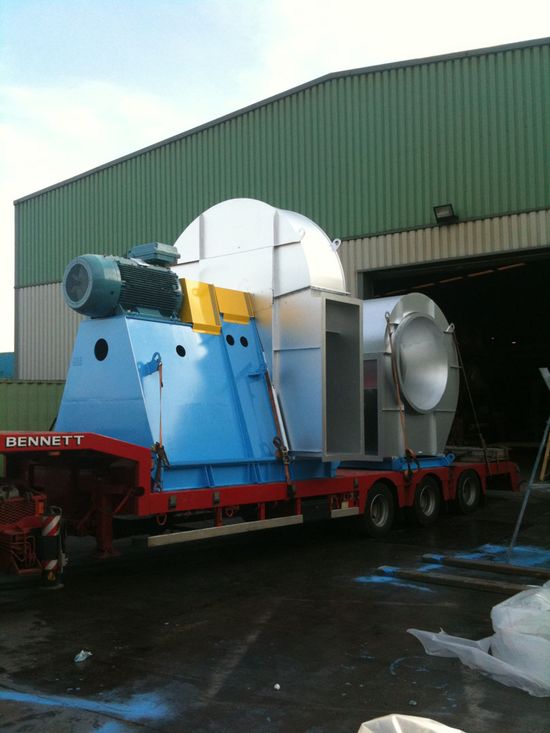

Introducing our No.7 arrangements, a versatile option in our lineup. Similar to the No.4 Pedestal design, the No.7 features a motor placed on a pedestal, aligned directly with the impeller hub. However, in the No.7, a shaft and bearing unit, connected via a flexible coupling, separate the motor from the impeller hub. This configuration is often used instead of a direct-driven fan (No.4) in situations where the fan and motor's physical size make future maintenance a key consideration. With the No.7 arrangement, the fan and impeller can be removed independently of each other, simplifying future maintenance tasks.
-
No.7 Pedestal
-
No.7 Plug
Leading Manufacturers
Technical Details
This design offers a significant maintenance advantage: the impeller and motor can be removed independently. This feature is especially beneficial for larger applications. The motor is mounted on an extended pedestal.
- Size Range Fixed Handing
- 1000mm to 2000mm (2450mm as special)
- Max temperature
- 250°C standard (With lagging or "bung" up to 450°C)
