Cased Axial Fans

Axial Fans

Short and Long Cased Axial Fans

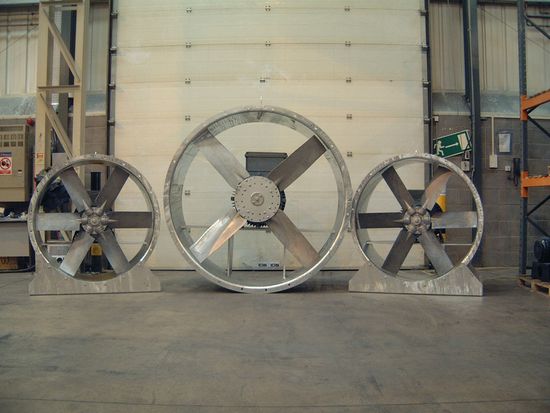

These arrangements have the impellor directly mounted onto the motor shaft. The motor sits on an adjustable platform. The casing is flanged at both ends; the flanges are produced by spin forming from one piece of metal.

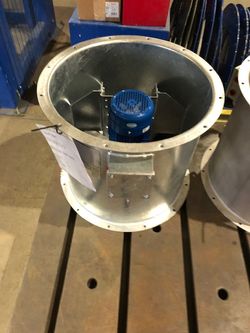

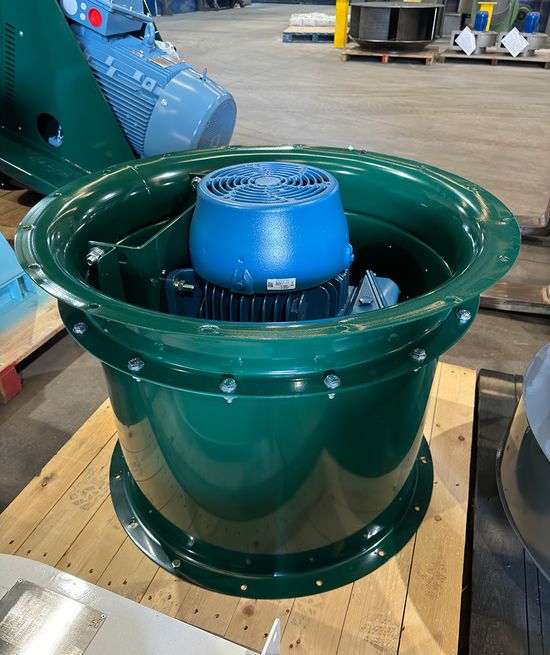

These casings are usually employed at the end of ducting runs. The impellor is contained within the casing; however, the end of the motor and supports protrude past the end of the casing. They can be supplied with optional inlet bellmouths and guards.

This fan can also be supplied without a terminal box:

Ancillaries such as spigot flanges, inlet bellmouths, casing feet, and flexible connections are also available. RHF can offer non-standard arrangements and special fans.

Leading Manufacturers

Technical details

Size Range

250mm to 1250mm (specials up to 2400mm)

Max temperature

40°C standard (specials up to 80°C)

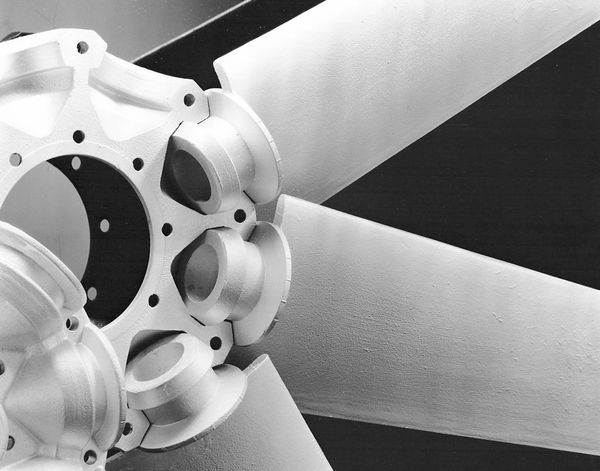

Impellers

Aluminium, PPG, PAG, PAGAS
